This page covers the workspace surfaces: the trusted primitive for the user’s connected mailbox, and the gateway channels that implement sending, inbox watches, and the Console’s Drive/SharePoint file picker.

​
Two send identities

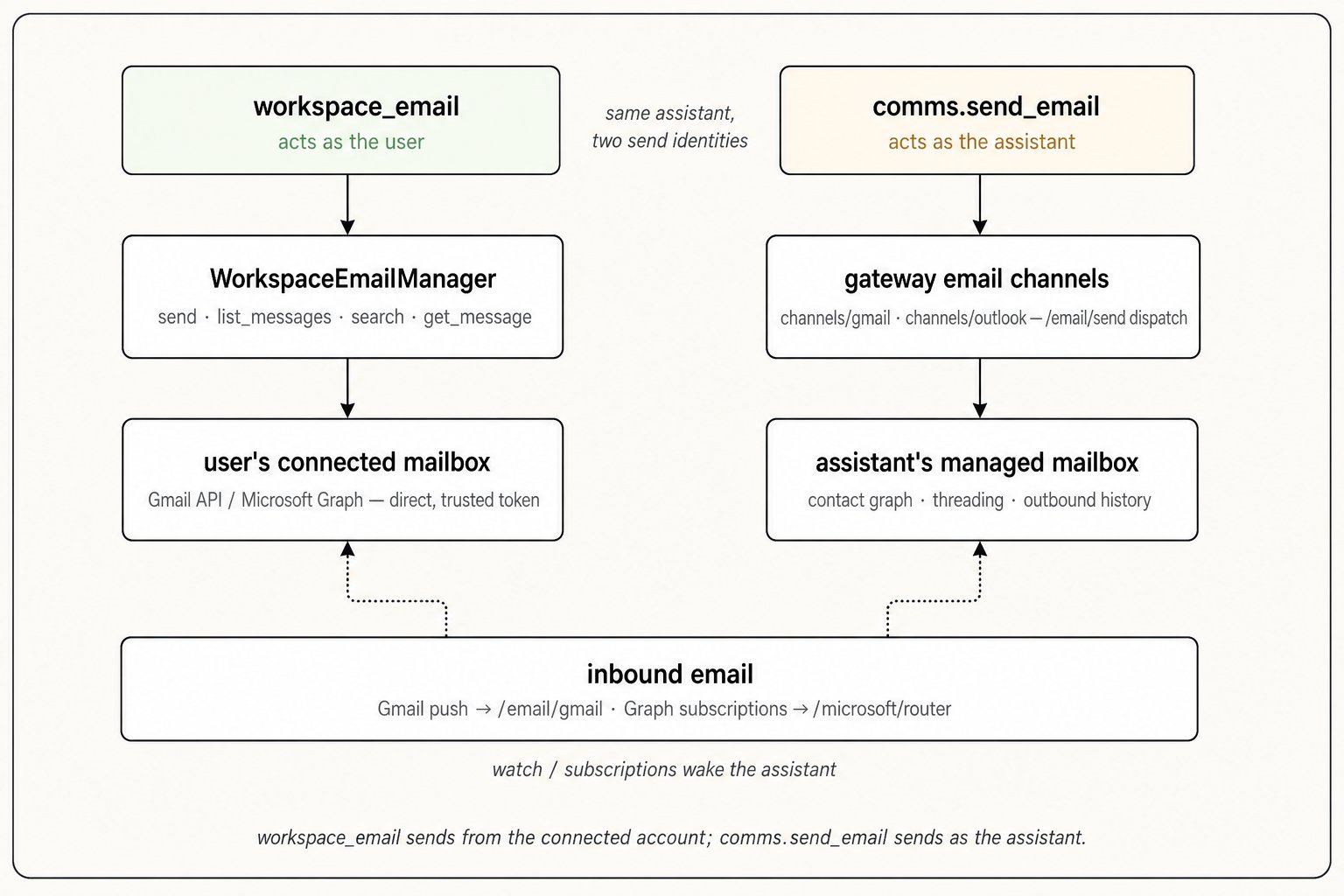

Email is the place where the twin-vs-teammate identity split (user docs) becomes concrete in code — there are two entirely separate send paths: Two email identities: primitives.workspace_email acts as the user through WorkspaceEmailManager calling Gmail API or Microsoft Graph directly with a trusted token; primitives.comms.send_email acts as the assistant through the gateway email channels to its managed mailbox; inbound email arrives via Gmail push to /email/gmail and Graph subscriptions to /microsoft/router, waking the assistant

​
primitives.workspace_email — acts as the user

unify/workspace_email/workspace_email_manager.py defines WorkspaceEmailManager, registered as a primitive surface (not a full state manager) in unify/function_manager/primitives/registry.py and reached as primitives.workspace_email.*. Its public API:
MethodNotes
send(to, subject, body, cc, bcc, in_reply_to, thread_id)Sends from the connected account
list_messages(query, max_results)Newest-first summaries
search(query, max_results)Alias of list_messages
get_message(message_id)Full message with plain-text body
Implementation notes for anyone extending it:
  • Provider detection (_provider) checks for Google state (granted scopes / in-memory token) first, then Microsoft.
  • It is trusted code: it calls get_provider_access_token for the real token and talks to gmail.googleapis.com / graph.microsoft.com directly, not through the provider proxy.
  • Threading: on Gmail, in_reply_to becomes RFC 5322 In-Reply-To/References headers and thread_id maps to Gmail’s threadId; the Microsoft path currently sends via Graph sendMail without reply threading.
  • Errors surface as WorkspaceEmailError with user-actionable messages (e.g. no connected account available).

​
primitives.comms.send_email — acts as the assistant

The assistant’s own mailbox goes the other way entirely: the runtime calls send_email_via_address in unify/conversation_manager/domains/comms_utils.py, which POSTs to the gateway’s provider-agnostic dispatcher unify/gateway/channels/email/views.py (POST /email/send). _is_outlook_assistant routes to the Gmail or Outlook channel based on the assistant’s email_provider ("google_workspace" vs "microsoft_365" on AssistantDetails in unify/session_details.py) or the presence of a Microsoft token.

​
The Gmail channel

unify/gateway/channels/gmail/views.py (mounted at /gmail, admin-key auth like all channels):
EndpointHandlerPurpose
POST /gmail/sendsend_emailMIME build + users().messages().send
POST /gmail/watchwatch_emailGmail users().watch → Pub/Sub topic
DELETE /gmail/watchdelete_gmail_watchusers().stop (run before revoking a token)
GET /gmail/attachmentget_attachmentFetch an attachment by message + attachment id
DELETE /gmail/deletedelete_email_userAdmin SDK Directory user deletion
Send builds a MIMEMultipart message (attachments via base64 content_base64), resolves the display name with _format_from_header, and threads with both mechanisms: In-Reply-To/References headers (via _as_message_id) and Gmail’s threadId in the send body. Credentials resolve through _gmail_service_from_assistant — a connected account’s GOOGLE_ACCESS_TOKEN when present, else service-account delegation from GCP_SA_KEY (the platform-mailbox path). The watch targets the Pub/Sub topic from _gmail_topic_path (gmail-notifications + environment suffix); pushes land on the adapter’s POST /email/gmail (gmail_notification_processor in unify/gateway/adapters/google.py), which resolves the assistant by mailbox address, activates its runtime, and publishes an email-thread envelope carrying the Gmail historyId.

​
The Outlook channel

unify/gateway/channels/outlook/views.py mirrors the shape with Microsoft Graph, via the client helpers in unify/gateway/common/graph.py (graph_client_from_assistant prefers the connected account’s MICROSOFT_ACCESS_TOKEN, falling back to app-only admin credentials):
EndpointHandlerPurpose
POST /outlook/sendsend_outlook_emailGraph sendMail, or reply/createReply for threads
POST /outlook/watchwatch_outlook_emailGraph subscription on the inbox (changeType="created")
DELETE /outlook/watchdelete_outlook_watchRemove the subscription
GET /outlook/attachmentget_outlook_attachmentAttachment fetch
Details that matter: in_reply_to here is a Graph message id, not an RFC Message-ID; replies with attachments use the two-step createReply → attach → send dance because Graph’s one-shot reply can’t carry attachments; and subscriptions authenticate their callbacks with a clientState of {OUTLOOK_WEBHOOK_SECRET}::{user_email}. Inbound Graph notifications — Outlook and Teams — converge on one adapter entry point: microsoft_router in unify/gateway/adapters/microsoft.py (POST /microsoft/router), which answers the validation handshake and dispatches each notification by resource shape to outlook_notification_processor_from_payload or the Teams equivalent. Graph subscriptions expire (3-day max) and Gmail watches need periodic re-arming — the renewal crons live in the hosted control plane, not in the OSS gateway; self-hosters re-arm via the watch endpoints.

​
Drive & SharePoint channels: the file picker’s backend

These two channels exist to power the Console’s file-access picker (and ancestry lookups). Both are read-mostly, BYOD-token surfaces:
  • unify/gateway/channels/drive/views.py — GET /drive/roots (My Drive + shared drives via drives().list), /drive/children, /drive/item, /drive/search. Items are identified by the (drive_id, item_id) pair — the same shape the proxy’s policy decisions use, which is no coincidence.
  • unify/gateway/channels/sharepoint/views.py — sites (/sharepoint/sites), drives (/sharepoint/drives covers OneDrive via the personal drive; drive_id="me" resolves through _drive_ref), folder listings by id or path, content download, upload, folder creation, deletion, and search.

​
Teams meetings (workspace-adjacent)

Meeting creation lives in unify/gateway/channels/teams/create_meeting.py: create_instant_onlinemeeting (Graph /me/onlineMeetings) and create_scheduled_meeting_event (Graph /me/events with isOnlineMeeting=True), exposed via POST /teams/create_meeting. Teams chat subscriptions follow the same watch pattern as Outlook (_rebuild_teams_watches in the teams channel). The rest of Teams is communication territory — see the Communication developer docs.

​
OAuth scopes

The feature → scope bundle catalogue (what “Email”, “Drive”, “Calendar” grant) is intentionally not in the open-source repo — it lives in the hosted control plane, which builds the consent URL. What the OSS code holds instead:
  • Channel-local constants for its own clients — _GMAIL_SCOPES and _DIRECTORY_SCOPES in the Gmail channel, GRAPH_SCOPES (.default) in common/graph.py.
  • The granted scopes, persisted at callback time as GOOGLE_GRANTED_SCOPES / MICROSOFT_GRANTED_SCOPES and consumed by the actor’s scope-checking discipline.

​
Self-host vs hosted

The same channel and adapter code serves both deployments — create_app(extra_routers=…) in unify/gateway/app.py lets the hosted comms app compose private infrastructure around it, and GatewayContext (unify/gateway/context.py) injects the deployment-specific backends: envelope delivery (HttpEnvelopeSink to the local runtime vs a Pub/Sub transport), runtime activation (LocalRuntimeActivator no-op vs starting a cloud job), and public URL resolution for OAuth redirect URIs (PublicUrlProvider, surface "adapters"). Watch renewal and token-refresh crons are hosted concerns; a self-host stack polls or re-arms explicitly.

​
Tests

Gateway-side behavior is pinned by tests/gateway/common/test_graph.py, tests/gateway/channels/email/test_views.py, tests/gateway/channels/outlook/test_views.py, and tests/gateway/channels/teams/test_views.py; the primitive surface is covered in tests/function_manager/primitives/test_scope.py.
