Architecture

Everything in the Workspace section is implemented in the open-source unifyai/unify repository. This developer sub-section explains how it actually works — the modules, classes, and contracts — for anyone reading, extending, or self-hosting the code. The workspace integration is built from four cooperating pieces:

1. Gateway OAuth adapters — unify/gateway/adapters/google.py and unify/gateway/adapters/microsoft.py — handle the OAuth callbacks when a user connects an account, exchange the authorization code for tokens, and persist them as assistant secrets.
2. Runtime token plumbing — unify/common/runtime_oauth.py plus the OAuth-aware parts of unify/secret_manager/secret_manager.py — mirror tokens into the running assistant and keep raw credentials out of everything the LLM can read.
3. The provider proxy — unify/provider_proxy/ — a localhost proxy that gives sandboxed actor code the full Google / Microsoft Graph REST surface without ever holding a real token, while enforcing the per-assistant file-access allowlist.
4. Workspace surfaces — the trusted unify/workspace_email/ primitive for the connected mailbox, and the gateway channels (gmail, outlook, drive, sharepoint) that back sending, inbox watches, and the Console file picker.

​

The core design decision

One idea organizes the whole subsystem: the LLM-controlled sandbox never holds a real OAuth token. Sandboxed execute_code calls get_oauth_access_token("google") and receives a nonce — a capability handle valid only against the localhost proxy. The proxy, running in the trusted parent process, swaps the nonce for the real bearer token on each upstream request. Two consequences fall out of this:

• Actor code gets the entire provider REST API (Drive, Calendar, Gmail API, Graph) with ordinary httpx calls — no bespoke per-endpoint tool surface to maintain.
• Every file-shaped request funnels through one choke point where the workspace file-access policy is enforced, uniformly, regardless of what code the LLM wrote.

Trusted, non-sandboxed code (like WorkspaceEmailManager) bypasses the proxy and uses get_provider_access_token, which returns the real token — the split between those two functions in runtime_oauth.py is the trust boundary.

​

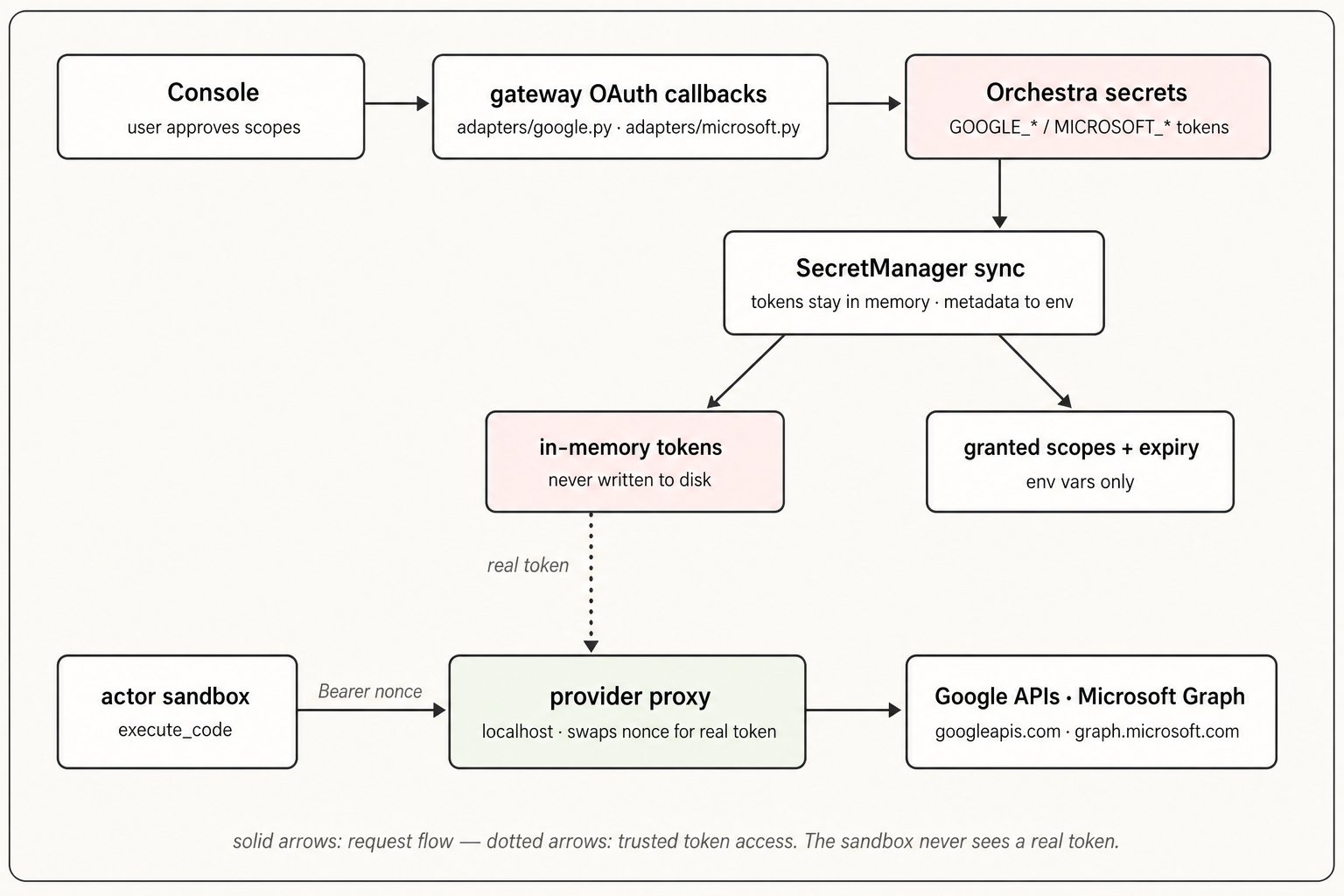

End-to-end lifecycle

1. Connect — the Console builds an OAuth URL (scope bundles are assembled in the hosted control plane; see the scopes note) and the user consents at Google/Microsoft. The provider redirects to GET /google/auth/callback or GET /microsoft/auth/callback on the gateway.
2. Persist — the callback (google_oauth_callback / microsoft_oauth_callback) validates the HMAC-signed state via verify_oauth_state in unify/gateway/adapters/oauth.py, exchanges the code, and writes the token set to Orchestra with upsert_assistant_secrets: GOOGLE_ACCESS_TOKEN, GOOGLE_REFRESH_TOKEN, GOOGLE_TOKEN_EXPIRES_AT, GOOGLE_GRANTED_SCOPES, GOOGLE_ACCOUNT_EMAIL (and the MICROSOFT_* equivalents, plus MICROSOFT_TOKEN_SOURCE).
3. Mirror — the running assistant pulls secrets back down through SecretManager._sync_assistant_secrets, with a hard split: raw tokens stay in an in-memory dict, while non-sensitive metadata (expiry, granted scopes) is mirrored to the environment. Details in OAuth & secrets.
4. Use — actor code hits the proxy (Provider proxy); trusted surfaces like primitives.workspace_email.* call providers directly (Email & gateway channels).
5. Refresh — the runtime never talks to Google/Microsoft token endpoints itself. A platform refresh job keeps Orchestra’s copies fresh; the runtime re-syncs on demand (refresh_provider_access_token) — for example after the proxy sees a 401.
6. Revoke — disconnecting calls POST /google/revoke (Google tokens are actively revoked upstream) and clears the Orchestra secrets; the next sync drops them from the runtime.

​

What lives where

The rest of this sub-section walks each layer in depth:
