Developers

Everything in this section so far describes what the assistant’s computer does. This page explains how, at the code level, for developers using, extending, or auditing the open-source unify runtime. It covers the full stack: the primitives.computer.* surface the actor programs against, the HTTP backends beneath it, the agent-service that executes on the VM, the desktop composition itself, the readiness/lifecycle events, workspace file sync, execution surfaces, and the screen-share plumbing. All references are to the open-source repo; the hosted VM pool and Console are separate closed-source components that speak to these interfaces.

​

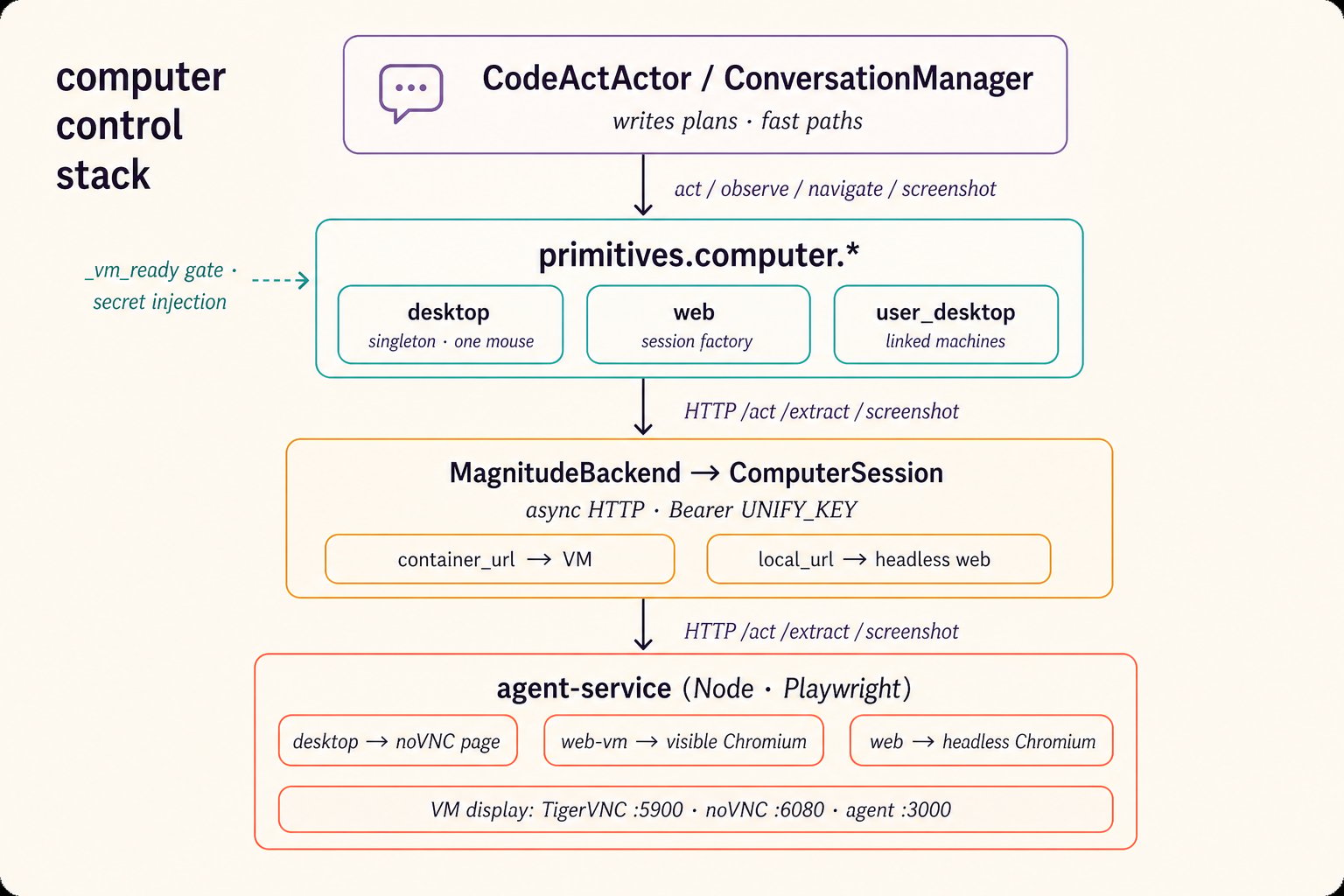

The control stack

Computer control is layered, with a clean seam at each level:

1. Callers — actor plans (via act) and the ConversationManager’s fast-path tools both invoke the same primitives.
2. Primitives — ComputerPrimitives exposes three namespaces and owns readiness gating, secret injection, and session routing.
3. Backends — computer_backends.py translates method calls into HTTP against an agent-service.
4. agent-service — a Node/Express wrapper around the Magnitude browser agent (agent-service/src/index.ts), running Playwright sessions on or off the VM.

A key design decision sits at the bottom: desktop control is indirect. The agent-service’s desktop mode opens the VM’s own noVNC viewer page in a headless Playwright browser and drives the desktop through it — mouse, keyboard, and screenshots all pass through the noVNC canvas, which guarantees that what the agent clicks and what it sees share one coordinate space.

​

The primitives layer

ComputerPrimitives is a singleton (all actors share one backend) with three namespaces: Two method sets define what each namespace exposes: _COMPUTER_METHODS (the full surface — act, observe, query, navigate, get_links, get_content, get_screenshot, the low-level input methods, solve_captcha, execute_actions) and _DESKTOP_METHODS, which strips get_content (the noVNC page’s DOM is meaningless) and solve_captcha (web sessions only). Every call routes through _make_session_method, which does the load-bearing work:

• Readiness gating — waits up to 300 s on the module-level threading.Event _vm_ready before any managed-VM call. Nothing touches the VM until the lifecycle pipeline (below) sets the event.
• Secret injection — for act, observe, and type_text, the first argument passes through the SecretManager’s from_placeholder, so plans can write ${SERVICE_API_KEY} without the raw value ever appearing in LLM-visible text.
• Screenshot decoding — get_screenshot returns a PIL Image (decoded from base64) so actor code can display(...) it or hand bytes to query_llm(images=[...]).
• Dead-session detection — a ComputerAgentError with error_type == "session_not_found" (or closed browser/context/page messages) marks a WebSessionHandle inactive rather than retrying into a void.

WebSessionHandle wraps one live session with the full method set plus stop(); handles carry session_id, label, visible, and active, and sessions can be re-attached later by numeric ID from a different actor run.

​

Backends

computer_backends.py defines the contract and both implementations:

• ComputerBackend — the ABC. The two headline methods have distinct contracts: act(instruction, verify=False) is goal-level (the agent plans multi-step UI work from vision; verify=True re-observes in a loop until the goal is confirmed), while observe(query, response_format) is strictly read-only extraction from the current screen, optionally into a Pydantic model. query() asks the session’s own memory of past actions, not the live page. A _LowLevelActionsMixin provides click, type_text, scroll, press_key, tab management, and friends — all compiled to execute_actions payloads that run without any LLM in the loop.
• ComputerSession — the per-session async HTTP client. Every method maps to one agent-service endpoint (/act, /extract, /query, /nav, /screenshot, /links, /content, /execute-actions, /captcha/solve, /stop), with the session ID injected into each payload and SESSION_DETAILS.unify_key as the Bearer token. Desktop sessions differ in two ways: navigate is expressed as an act (“Go to the page: …”), and observe forces bypassDomProcessing — screenshot-only vision.
• MagnitudeBackend — the multi-mode factory. It holds two base URLs: container_url (the VM — serves desktop and web-vm sessions) and local_url (the Unity host — serves headless web sessions, default http://localhost:3000). get_session(mode) lazily creates one session per mode; parallel web sessions come from create_session. Errors are typed end-to-end: agent-service failures surface as ComputerAgentError(error_type, message).
• MockComputerBackend — a full in-process stand-in used by the test suite: canned ActResults and a valid 32×32 PNG screenshot, so flows exercise the whole call path with no Playwright.

solve_captcha() (web sessions) drives AntiCaptcha for reCAPTCHA v2 only, keyed by ANTICAPTCHA_KEY on the agent-service; the solved token is injected page-side and never returned to the caller.

​

The agent-service

The Node service in agent-service/ is the only process that touches Playwright. Highlights:

• Auth is dual: the Bearer token must equal the service’s own UNIFY_KEY and is verified against Orchestra’s /user/basic-info — a stolen URL alone is useless.
• Session modes: POST /start with {mode: "desktop" | "web-vm" | "web"}. Desktop mode waits for noVNC, opens the viewer page in Playwright, and instructs the Magnitude agent that it is controlling a VNC desktop. web-vm launches a visible Chromium on the VM’s display; web launches headless Chromium wherever the service runs.
• Beyond the browser: POST /exec runs shell commands (with shell_mode: "powershell" | "cmd" on Windows) and POST /files reads/writes under the ~/Unity/Local workspace — these power the execution surfaces, not the browser sessions.
• Screenshots come in two flavors: POST /screenshot (live capture, with cursor position) and POST /screenshot/latest (the cached frame from the last action — effectively free, used at high frequency during screen shares).

​

The VM desktop itself

deploy/desktop/ contains the desktop composition that runs on the VM, supervised by supervisord: The VNC password is derived from the first 8 characters of the assistant’s UNIFY_KEY (legacy VNC caps passwords at 8 chars). In self-host, a Caddy reverse proxy (Caddyfile.selfhost) maps the public shape used everywhere: /desktop/* → noVNC and /api/* → agent-service. That shape is the desktop_url contract: given a base URL, the Console live view is {base}/desktop/custom.html and the automation API is {base}/api.

​

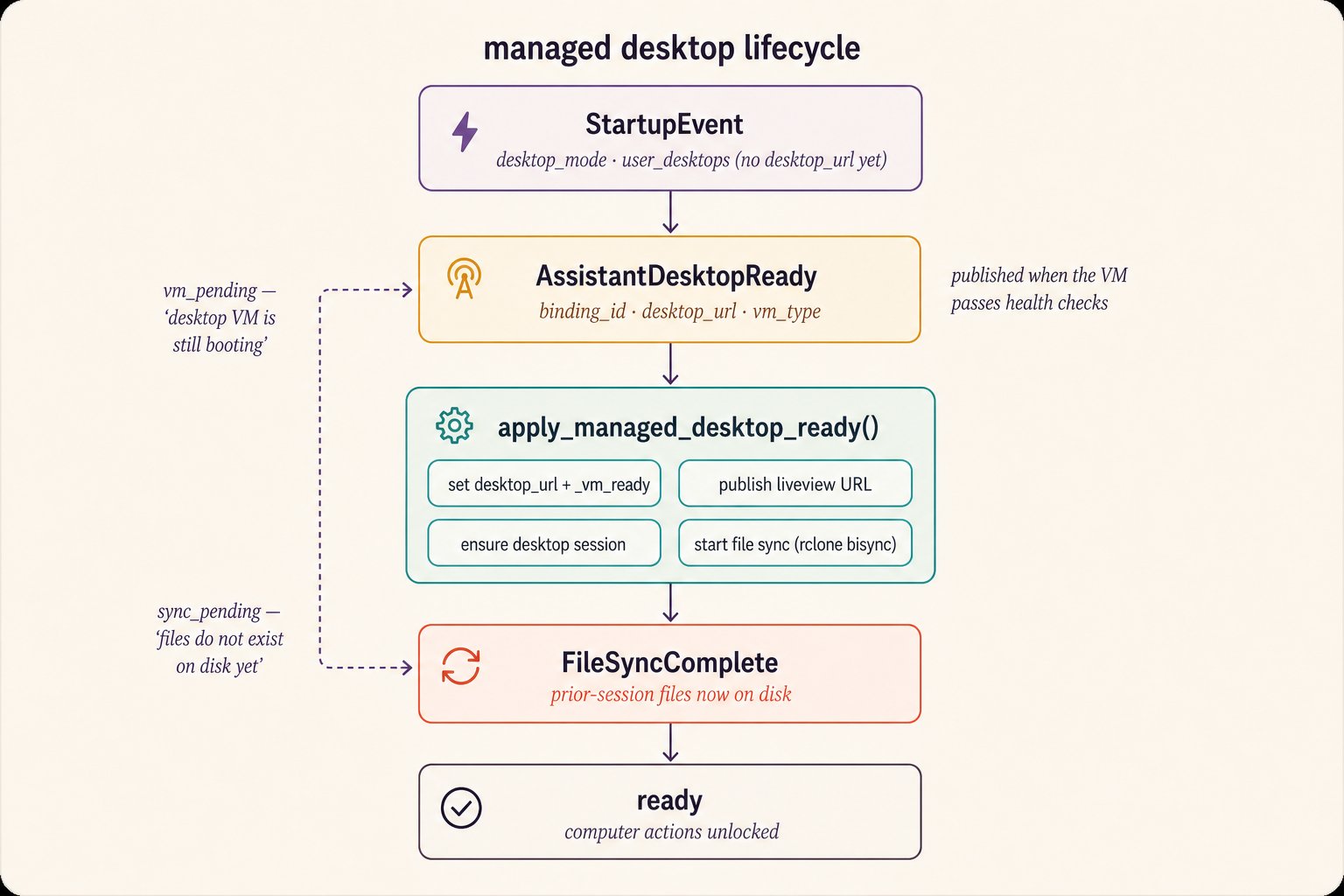

Lifecycle: from cold start to ready

Desktop state lives on the global session singleton (session_details.py): AssistantDetails.desktop_mode ("ubuntu" / "windows"), desktop_url, and the has_managed_desktop property requiring both. Notably, the StartupEvent populates desktop_mode but not desktop_url — the URL is only set when the VM is actually reachable. Two events in events.py drive the transition:

• AssistantDesktopReady (binding_id, desktop_url, vm_type) — published by the hosting layer once the VM passes health checks.
• FileSyncComplete — the initial workspace bisync has finished.

The handler in event_handlers.py guards against stale binding_ids and calls apply_managed_desktop_ready() in self_host_desktop.py — the single convergence point for hosted and self-host paths. In order, it sets SESSION_DETAILS.assistant.desktop_url, publishes the liveview URL for the Console, sets the _vm_ready event and flips cm.vm_ready, warms the desktop session (_ensure_desktop_session, with exponential backoff), and kicks off file sync — publishing FileSyncComplete when the initial pass lands. Self-host deployments can shortcut the whole dance: bootstrap_managed_desktop_on_startup() probes {api_base}/desktop/vnc.html at boot and applies readiness without waiting for any event. Readiness gating is prompt-level, rendered by renderer.py: while pending, the system prompt carries <infrastructure status='vm_pending'> (“Your managed desktop VM is still booting…”) and then status='sync_pending' (“Files from previous sessions … DO NOT EXIST on disk yet”), each block disappearing as its flag flips. The behavioral contract — defer computer work while pending, follow up after FileSyncComplete — is pinned by tests/conversation_manager/core/test_infrastructure_readiness.py.

​

Workspace file sync

The VM and the Unity runtime share one workspace, kept in step by unify/file_manager/sync/:

• SyncConfig (config.py) — rclone over SFTP to the host from desktop_url, port 2222, user unityuser, ~/Unity/Local (from get_local_root() in file_manager/settings.py) ↔ /Unity/Local on the VM (C:\Unity\Local on Windows). Disabled entirely under a shared mount (UNITY_DESKTOP_SHARED_MOUNT=1).
• RcloneSync (rclone.py) — bisync with --conflict-resolve newer (latest modification wins), automatic --resync recovery from corrupted baselines, plus per-file copyto/deletefile for write-through.
• SyncManager (manager.py) — fetches the SSH key from the backend, runs the initial bisync(force_resync=True), then polls a 30-second bisync loop; on_file_write/on_file_delete hooks give writes immediate push semantics. It’s wired into the FileManager through LocalFileSystemAdapter.start_sync().

The workspace layout the actor is told about (the filesystem-context table in actor/prompt_builders.py):

​

Execution surfaces

Shell and Python execution is orthogonal to the browser stack, organized by ExecutionSurface: LOCAL (the Unity host process), ASSISTANT_DESKTOP (the managed VM), and USER_DESKTOP (a linked user machine). Each has a target class in unify/actor/execution/targets/:

• AssistantDesktopTarget runs commands through AgentServiceExecClient (POST {desktop_url}/api/exec), forcing shell_mode="powershell" when desktop_mode == "windows". File movement rides the bisync.
• Windows-only functions: stored functions flagged windows_os_required=True are routed by function_manager.py to the Windows VM — the wrapper script is staged into the sync root, bisynced across, executed via PowerShell, and the JSON result bisynced back. See tests/function_manager/python/test_remote_windows.py for the full round trip.

​

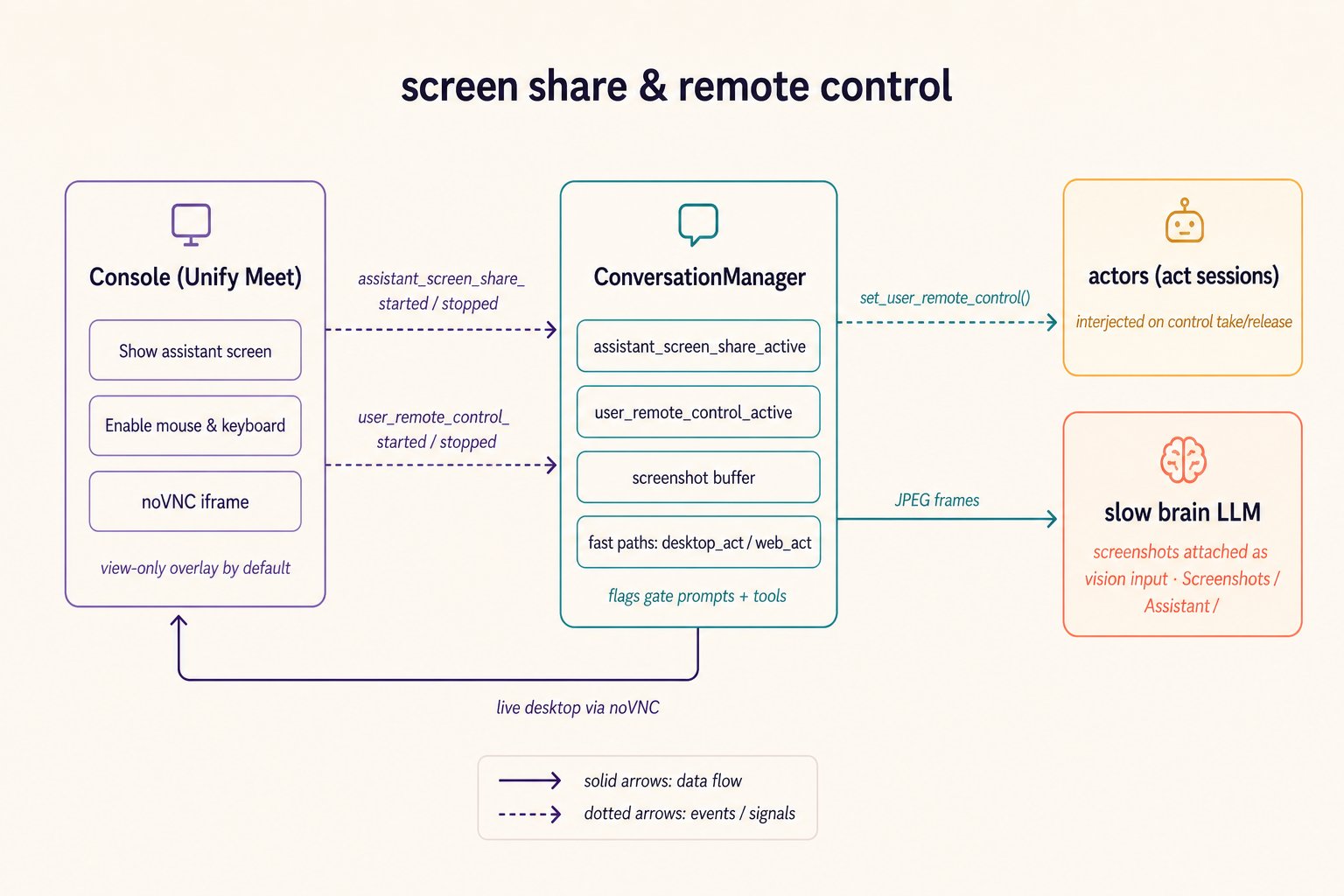

Screen share & remote control

The Console’s Meet controls arrive as system events — AssistantScreenShareStarted/Stopped, UserScreenShareStarted/Stopped, UserWebcamStarted/Stopped, UserRemoteControlStarted/Stopped (all in events.py). The shared handler in event_handlers.py flips the corresponding ConversationManager flags (assistant_screen_share_active, user_remote_control_active, …), pushes notifications to the slow brain and — during voice calls — guidance to the fast brain, and on screen-share start eagerly warms the desktop session so the first screenshot is instant. Three mechanisms hang off those flags:

• Fast paths. computer_fast_path_eligible (true iff the assistant’s screen is being shared) exposes the desktop_act / web_act tools in brain_action_tools.py. These deliberately bypass the actor: _invoke_fast_path_action calls the primitives directly in a background task, registers a minimal _DesktopActionHandle in the in-flight action set, silently interjects any running act sessions with what happened, and returns {"status": "acting"} immediately. One visible interaction per call — the constraint that keeps them snappy — is enforced by prompt contract.
• Remote control arbitration. ComputerPrimitives. set_user_remote_control(active, context) broadcasts interjections into every registered actor queue, so running plans learn the user has the mouse (and later, that they released it). During user control, assistant-frame capture switches to cached frames (cached=not user_remote_control_active in medium_scripts/call.py); on release, a fresh live capture resets the cache.
• The screenshot pipeline. While sharing, assistant frames are captured via POST /screenshot/latest, converted to JPEG, and pushed into ConversationManager._screenshot_buffer. On each slow-brain turn the buffer is drained, frames are written under Screenshots/Assistant/ (paths from generate_screenshot_path() in cm_types/screenshot.py), and attached to the LLM request as multimodal image content. Inside act, plans read the same files and reason over them with query_llm(prompt, images=[...]) from common/reasoning.py.

External meetings reuse the machinery: call_manager.py’s _start_meet_screenshare presents the VM’s own noVNC page ({desktop_url}/desktop/custom.html?password=…) into a Google Meet or Teams call via the agent-service’s meet routes.

​

The actor’s view

ComputerEnvironment registers the actor-facing tools — the desktop singleton methods, the web factory, and the user-desktop factory — and contributes the prompt context that teaches plans the ground rules: desktop is for native apps and anything already on screen, web.new_session(visible=True) is the default for browser work (visible=False for background lookups), screenshots are interpreted with query_llm(images=...) rather than observe() for pure perception, and desktop vs. web-session screenshots live in different coordinate spaces. Its capture_state() hands the steering system a {type: "visual", screenshot, url} snapshot so a paused action can be inspected mid-flight.

​

Tests as specs

The most instructive behavioral specifications, all under tests/:

​

Extending

Three seams are designed for extension: implement a new ComputerBackend to swap the automation engine (the mock backend is the reference for the full contract); add an ExecutionSurface target to route shell/Python work to a new machine class; or stand up your own agent-service — anything that speaks the /start, /act, /extract, /screenshot, /exec protocol with the dual-auth scheme can serve a desktop.
