Linked desktop internals

Everything else in this section describes the linked desktop as a user experiences it. This page is for developers: how the open-source unifyai/unify runtime models, controls, and gates access to a user’s own machine — as opposed to the assistant’s managed VM. The closed-source pieces (the Console linker UI, the tunnel relay, and the desktop client app itself) appear here only as opaque endpoints; every symbol referenced below is in the public repo. The mental model to hold onto: the runtime knows about three machines, each with its own primitives namespace and execution surface: The user’s machine is deliberately the odd one out: it is never shown in the Console live view, every call re-checks consent, file access is pull-on-request rather than continuously synced, and writebacks never touch originals.

​

The link: session state

The unit of state is UserDesktopLink in unify/session_details.py: Links live on the session as AssistantDetails.user_desktops, a dict[str, UserDesktopLink] keyed by owner, with AssistantDetails.user_desktop_for(user_id) as the lookup. The docstring carries the important design point:

A shared assistant can be linked to a different desktop per user, so links are keyed by owner_user_id and resolved at runtime against whoever is currently interacting with the assistant.

That’s the multi-user story in one line: for a shared assistant, the ConversationManager resolves an acting user each turn (the message sender when it maps to a provisioned system user, else the workspace owner) and desktop targeting follows the speaker’s link, not the owner’s. Three mechanics worth knowing:

• Wire → session. Links arrive as a user_desktops list on StartupEvent and AssistantUpdateEvent (unify/conversation_manager/events.py), applied via SessionDetails.populate and normalized by normalize_user_desktops. The gateway includes the field when building assistant payloads in unify/gateway/adapters/common.py. Link/unlink churn is just an AssistantUpdateEvent refresh — there is no dedicated “desktop linked” event.
• Subprocess propagation. SessionDetails.export_to_env round-trips the map through the ASSISTANT_USER_DESKTOPS env var (_encode_user_desktops / _decode_user_desktops) so actor subprocesses see the same links.
• No keys on the link. SFTP private keys never ride UserDesktopLink; they’re fetched on demand from an admin-only field (see the files section below).

​

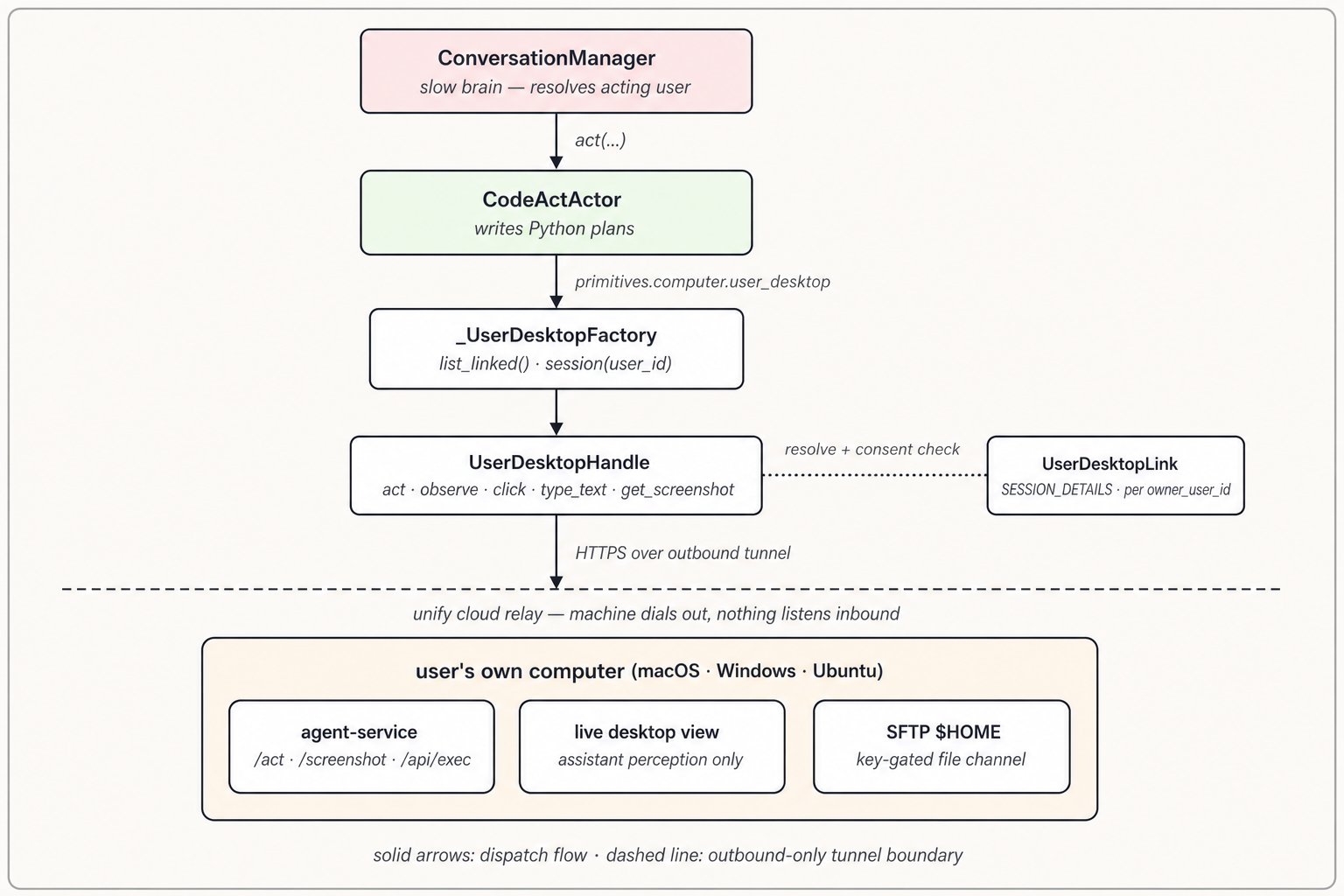

The control surface: primitives.computer.user_desktop

The namespace is built in unify/function_manager/primitives/runtime.py around three types:

• _UserDesktopFactory — the object bound at primitives.computer.user_desktop. Two synchronous entry points: list_linked() returns one dict per linked machine (user_id, os, filesys_sync, filesys_available), and session(user_id=None) returns a handle. Resolution (_resolve_user_desktop_link) defaults to the session’s primary user, falls back to the sole link when exactly one exists, and raises when several users have linked desktops and no user_id was given — ambiguity is an error, not a guess.
• UserDesktopHandle — the per-user control handle. Its method set is _DESKTOP_METHODS: the full computer vocabulary (act, observe, query, navigate, get_links, get_screenshot, plus low-level input like click, type_text, press_key, scroll, drag, execute_actions) minus get_content and solve_captcha. All methods are async; user_id, os, and label are properties.
• ComputerPrimitives — the owner that holds caches and consent state (below).

Routing is thin by design. Each handle method resolves the link, asserts consent, then obtains a backend session:

• The backend is the same MagnitudeBackend / ComputerSession HTTP client used for the assistant’s VM (unify/function_manager/computer_backends.py), pointed at {scheme}://{netloc}/api parsed from UserDesktopLink.url — i.e. the device’s agent-service reached through its outbound tunnel. Requests authenticate with Bearer SESSION_DETAILS.unify_key, which the device verifies against the platform before acting.
• Backends are cached per tunnel URL in ComputerPrimitives._user_desktop_backends — separate from the assistant VM’s singleton backend.

Three deliberate differences from the assistant-desktop path:

1. No VM-readiness gate. Assistant desktop calls wait on the managed VM being ready; user-desktop calls don’t — the machine either answers through its tunnel or errors.
2. Consent is re-checked per call, not per session (_assert_user_desktop_allowed) — a mid-session revocation fails the very next method call with PermissionError, whose message is the constant _USER_DESKTOP_REVOKED_MSG: stop immediately, don’t retry.
3. Failure clears caches. Terminal transport errors route through _handle_user_desktop_error, which drops the cached backend and SFTP clients so the next attempt reconnects cleanly.

​

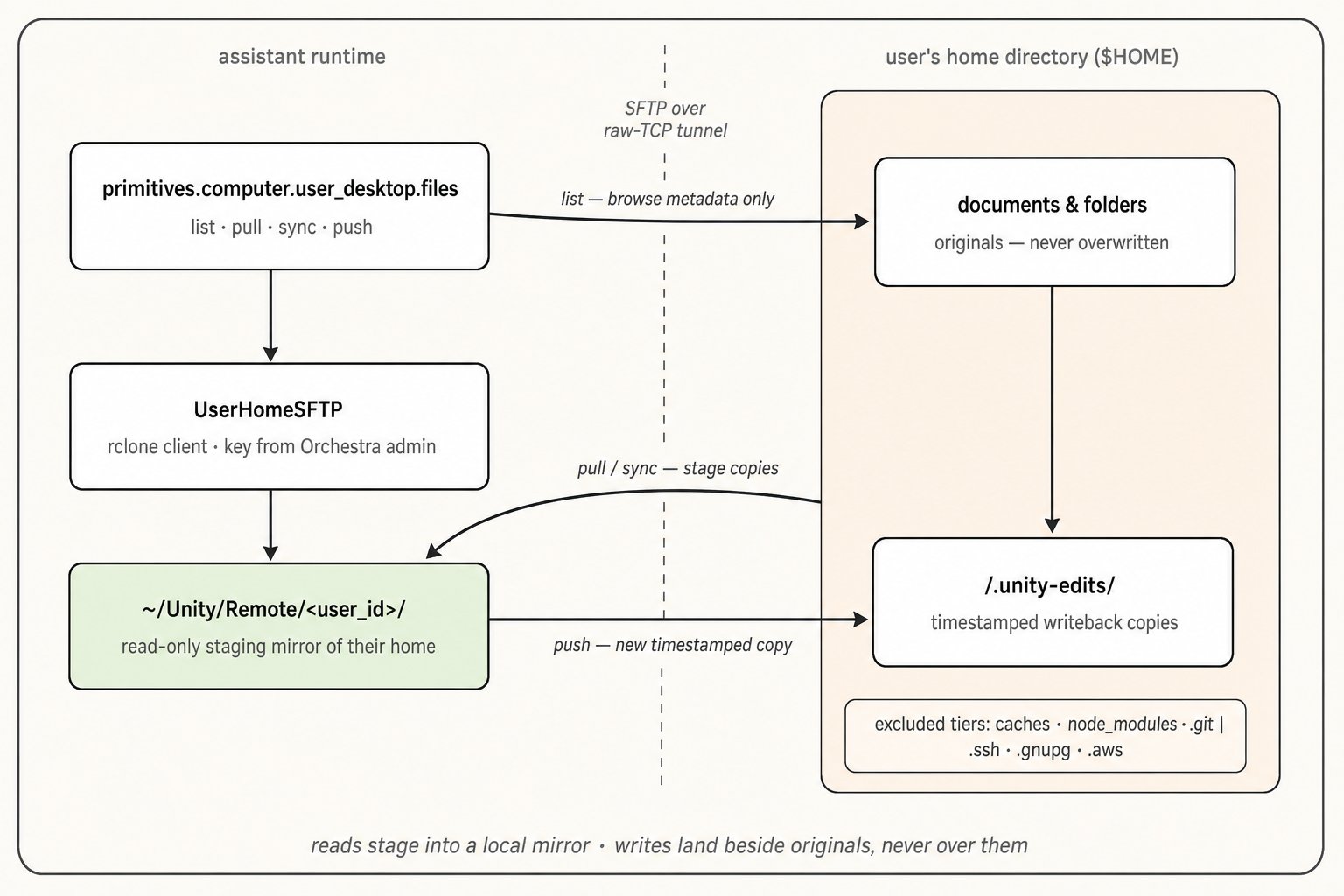

The file channel: user_desktop.files

File access is a separate channel with separate consent, implemented in unify/file_manager/sync/user_sftp.py and exposed through _UserDesktopFilesNamespace (in runtime.py) as four async methods: UserHomeSFTP is the transport: an on-demand rclone SFTP client, one per user, connecting as the fixed user SFTP_USER = "unity" to the link’s sftp_tunnel_host:port, serving the user’s $HOME as its root. Its setup() fetches the per-link private key, writes it plus a temporary rclone config, and connection-tests before first use. Key custody is the notable design decision, straight from the module docstring: the private key lives server-side in an admin/runtime-only map (user_desktop_filesync_keys, keyed by owner_user_id) and is fetched by _get_private_key() at setup time — “so it never rides” the link payload that circulates through session state. Three properties make this channel safe to expose to an autonomous agent:

• A read-only mirror, not a live mount. Reads stage into ~/Unity/Remote/<user_id>/ (the local_root property), mirroring the remote tree. The actor’s filesystem-context prompt (_build_filesystem_context in unify/actor/prompt_builders.py) names this mirror, and LocalFileSystemAdapter (unify/file_manager/filesystem_adapters/local_adapter.py) accepts absolute paths, so staged files flow through the normal primitives.files.* machinery without special-casing.
• Writebacks are versioned copies. push computes a remote path under EDITS_DIR = ".unity-edits" mirroring the destination’s parent, with a _utc_stamp() suffix in the filename. Originals are structurally unreachable by the write path — the guarantee the Console copy makes (“your originals are never overwritten”) is enforced here, not by convention.
• Tiered excludes. _build_excludes composes three tiers: _ALWAYS_EXCLUDES (the .unity-edits tree itself), _NOISE_EXCLUDES (caches, node_modules, .git, platform junk), and _SECRET_EXCLUDES (.ssh, .gnupg, .aws, credential stores). list_dir applies only tier 1 — browsing stays truthful — while pull/sync apply all three, so credential material never lands in the mirror.

Every file operation also publishes a UserDesktopFileAccess audit event (payload model in unify/events/types/desktop_primitive.py).

​

Shell and Python: the user_desktop execution surface

Command execution rides the actor’s execution-surface abstraction rather than the primitives handle:

• unify/actor/execution/surface.py defines ExecutionSurface (LOCAL, ASSISTANT_DESKTOP, USER_DESKTOP) and SurfaceCapabilities. _user_desktop_capabilities grants can_python and can_shell when the link has a url, and can_files only when filesys_available.
• The actor’s execute_code tool (unify/actor/code_act_actor.py) takes surface="user_desktop" plus an optional user_id, resolved through get_target(...) in unify/actor/execution/targets/factory.py. Remote surfaces are stateless-only — no persistent sessions or venvs, unlike local execution.
• UserDesktopTarget does the work: run_shell and run_python POST to the device agent-service’s /api/exec via AgentServiceExecClient (exec_client.py), with Python inlined through the same _inline_python_command helper the assistant-desktop target uses. put_file / get_file route through UserHomeSFTP.push / pull — file movement always goes through the guarded channel, never through shell redirection.

The prompt layer enforces a matching policy split: shell on surface="user_desktop" is only for commands the user explicitly wants run on their machine. Retrieving file content by shelling out — cat/find/tar/base64/cp/scp/rclone — is expressly forbidden; the actor is steered to user_desktop.files, which is where the no-overwrite and exclusion guarantees live. That rule appears both in the actor prompt (unify/actor/prompt_builders.py) and the computer environment context (unify/actor/environments/computer.py).

​

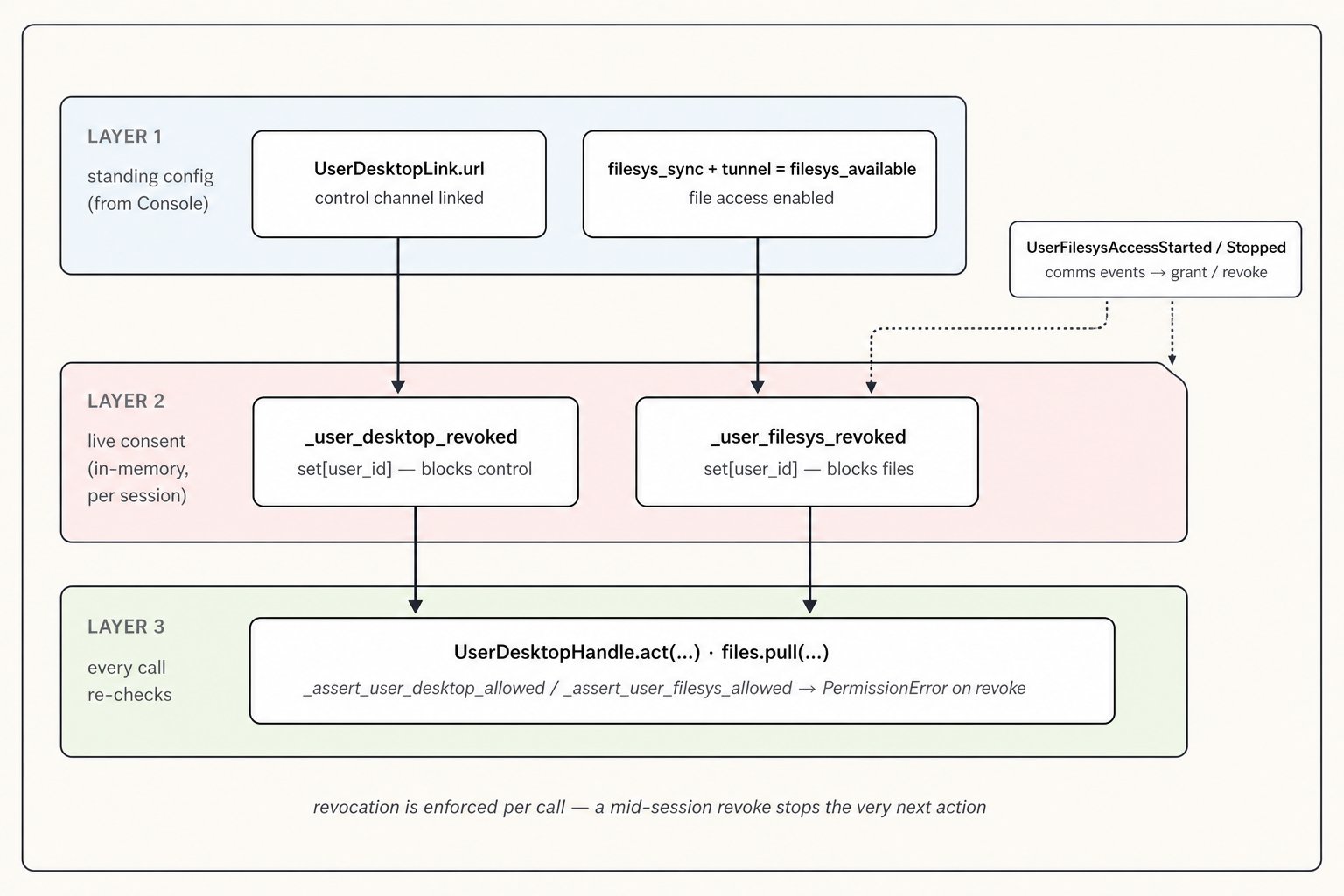

Consent: three gates, checked at three times

Access control is layered, and each layer answers a different question:

1. Standing configuration — has the user set this up? The link’s existence (with url) gates control; filesys_available gates files. This layer is refreshed by AssistantUpdateEvent whenever the user links, unlinks, or toggles filesystem access in the Console.
2. Live session consent — has the user changed their mind right now? ComputerPrimitives holds two in-memory revoke sets, _user_desktop_revoked and _user_filesys_revoked, mutated by the grant/revoke pairs (grant_user_desktop_control / revoke_user_desktop_control and the filesystem equivalents). The filesystem pair is wired to comms events: UserFilesysAccessStarted / UserFilesysAccessStopped (events.py) arrive from the platform and are handled in unify/conversation_manager/domains/event_handlers.py, which also snapshots recent conversation context so a running action is interjected with the revocation rather than discovering it by crash.
3. Per-call assertion — is this specific action still allowed? _assert_user_desktop_allowed / _assert_user_filesys_allowed run inside every handle method and every files.* call, raising PermissionError with an unambiguous stop instruction.

One nuance for extenders: the live revoke sets are enforced on the primitives path. UserDesktopTarget (the execute_code surface) checks standing capabilities at target-build time but does not re-assert the in-memory sets per command — if you add new execution paths, route consent through the ComputerPrimitives assertions to inherit mid-session revocation. A disambiguation that trips up most readers of this code: UserRemoteControlStarted / UserRemoteControlStopped are the inverse feature — the user taking mouse-and-keyboard control of the assistant’s VM during a Meet call (handled via ComputerPrimitives.set_user_remote_control). They have nothing to do with the linked user desktop despite the similar names.

​

The prompt layer: what the assistant is told

Behavior users observe (“only on explicit request”, “screen share first”) is implemented as prompt construction:

• _build_user_machine_access_block in unify/conversation_manager/prompt_builders.py renders the “Seeing and controlling the user’s machine” section with the strict resolution order — (1) active screen share/webcam, (2) linked desktop, (3) neither → offer a share — plus files clauses that vary with filesys_available vs. merely filesys_sync (consented but device not yet connected: the assistant is told to say so, not to attempt the sync).
• build_system_prompt threads has_linked_user_desktop, user_filesys_consented, user_filesys_available, and acting_user_id down from the brain (unify/conversation_manager/domains/brain.py), so the whole block is per-turn and per-speaker.
• ComputerEnvironment.get_prompt_context in unify/actor/environments/computer.py gives the actor the “Your Desktop vs. a User’s Desktop” rules of engagement: explicit request only, clarify when unsure, confirm before consequential actions, respect PermissionError as final, never modify their machine to work around an error — plus the macOS unlock flow using the stored login-password secret.
• console_ui.desktop_access_faq in unify/common/console_ui.py swaps the user-facing FAQ answer depending on whether a linked desktop exists.

​

Where to look next

The tests are the most instructive specification of the contract: And the common extension points:

• New control verbs — add to _COMPUTER_METHODS / _DESKTOP_METHODS in runtime.py and implement on the backend contract in computer_backends.py; the handle picks them up mechanically.
• New exclusion rules — extend the tier tuples in user_sftp.py; keep the tier split (truthful list, lean pull/sync) intact.
• New execution paths — implement an ExecutionTarget (targets/base.py) and register it in the factory; remember the consent note above.
